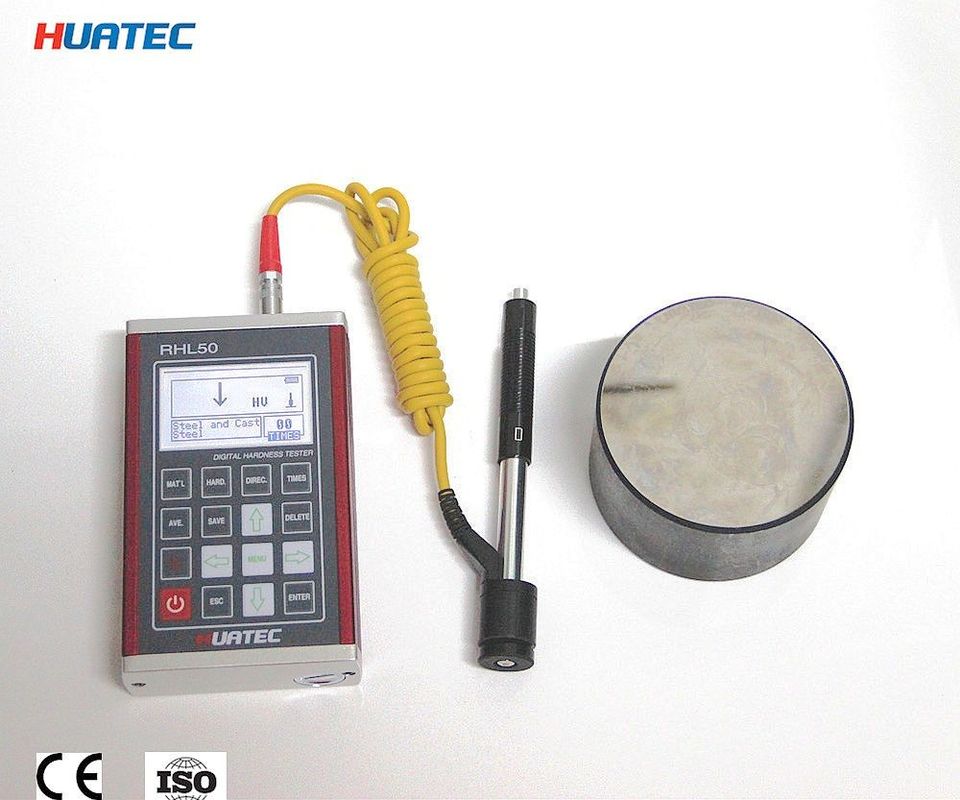

RHL50 Portable Digital Hardness Tester with Multi-Scale Conversion & 7 Impact Devices

RHL50 Portable Digital Hardness Tester with Multi-Scale Conversion & 7 Impact Devices

Features
LCD display of 128×64 matrix with back-light, showing all functions and parameters.
Converts to all common hardness scales (HV,HB,HRC,HRB,HRA,HS).
English displaying and easy and convenient menu operation.
Powerful PC Software available and USB 2.0 interface.
7 types of Impact Device optional, which don't need to be recalibrated when changing them.
Memory of 600 groups data(impact times:32～1).
Lower limit setting and sound alarm.
Material of “cast steel” is added; HB values can be read out directly when D/DC impact device is
used to measure “cast steel” work piece.
Printer be separated from main unit and copies of testing results can be printed as required.
In-built Smart Li lon rechargeable battery while USB connected and charging controlling circuit.
Inbuilt function of Software Calibration.
Two ways of switching off by key and automatically

Specifications

Main Application
The assembled machinery and permanently installed parts
Die cavity of molds
Heavy work piece
Failure analysis of pressure vessel, steam turbo-generator set and other equipment
Narrow testing space where work piece installed
Bearings and other parts
Cases which require the test result with normalized original recording
Material identification of the metal material warehouse
Quick tests of large range and multipoint measuring positions for heavy workpiece

Standard delivery
●Main unit
●Impact Device type D
●Test block with HLD value
●Charger
●Nylon brush
●Small supporting ring
●Data View Software
●USB&RS232 Communication cable
●Calibration Certificate
●Instruction manual
●Warranty card
●Carrying case

Optional accessories
●Optional Impact Devices DC/D+15/G/C/DL
●Normal and special type support rings (14pcs)
●Other test block (High, medium and low value))
●Printer
●Impact body
●Impact ball tip
●Tools for changing the ball tip
