Подробная информация о продукте:
|
| Размер пленки: | Минимальная длина: 50×100 мм, максимальная ширина: 450 мм. | Время обработки: | 3.2116 мин. (0.1 мин. регулируемый) |
|---|---|---|---|
| Скорость подачи: | 155-765 мм/мин. | Объем бака: | Дев. Ремонт. Помыть 13 л на каждого |
| Дев, временный.: | 20°40°C (0,1°C регулируемое) | Сухой температурный.: | 20°70°C (5°C регулируемый) |
| Потребляемая мощность: | 110-240В 10А, 50 или 60 Гц | ||
| Выделить: | industrial film processor for boilers,pressure vessel inspection equipment,oil pipeline NDT film processor |
||

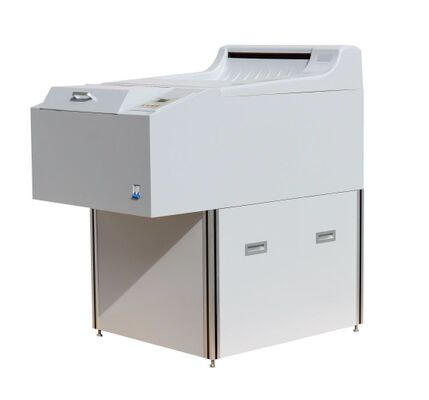

Industrial Film Processor Widely Used in Quality Inspection of Boilers,Pressure Vessels, Oil and Gas Pipeline
The machine is widely used in the quality inspection of boilers, shipbuilding, pressure vessels, oil and gas pipeline construction, aerospace and other equipment, and is widely praised by customers in the testing industry
| Model | HDL-430D |
| Film Size | Minimum: 50×100mm, Max. Width: 450mm |
| Film Type | roll orflat film |
| Film probes | 4 sets of micro inductive probes |
| Processing Time | 3.2~16min. (0.1min. adjustable) |
| Feed-in Speed | 155~765 mm/min. |
| Processing Capacity | 350×430mm 22-109 sheets/hr,80×300mm 110-545 sheets/hr (when 5.4 min processing time) |
| Tank Volume | Dev. Fix. Wash.13L for eac |
| Supplementary | automatically replenish water according to film size,waterreplenishment 50~700ml/㎡ |
| Dev. Temp | 20~40℃ (0.1℃ adjustable) |
| Fix. Temp | automatically adjustable |
| Dry Temp | 20~70℃ (5℃ adjustable) |
| Water Temp | 5~30℃ |
| Washing Controlling | when working: automatic water intake less than2L/min, standby: automatic shutdown |
| Power Consumption | 110~240V 10A, 50 or 60Hz |
| Weight | G.W: 128kg, N.W: 88kg |
| Dimension | appr.: 108×71.5×113cm |
![]()
![]()
