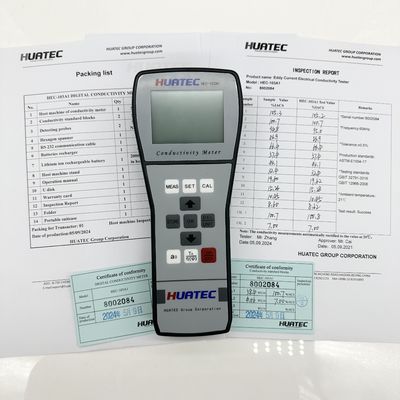

HEC-103A1 Digital Eddy Current Conductivity Meter for Non-Ferromagnetic Metal Testing

Products of this series are the first generation of Digital Conductivity Meter designed with eddy phase. These products may be used for distinguishing, grading, and state detecting for non-ferromagnetic metal. These are commonly used in industries of machinery, electric power, aviation, aerospace, nuke, military, etc.

1.APPLICATION FIELDS

• Distinguishing and examining alloy
• Examining heat-treating state, during manufacturing, as well as inspecting over-heated damage during service (such as airplane).
• Detecting grades of materials
• Metal classification
• Detecting the density of powder-metallurgical parts
• Detecting the conductivity of conductors during manufacturing and servicing.

2.TECHNICAL PARAMETER

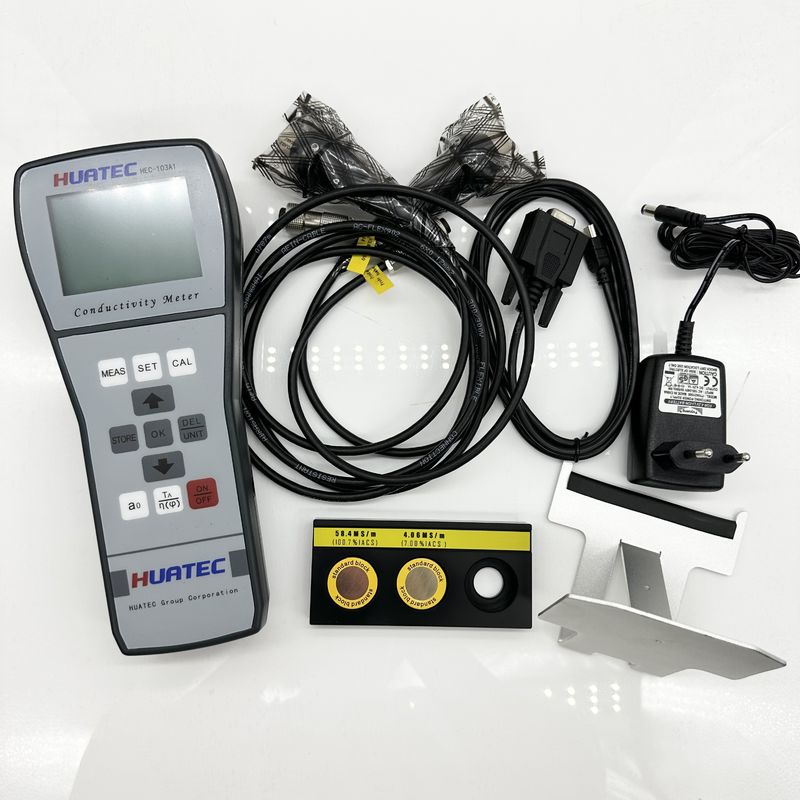

Standard accessories:

Main unit 1pc, probe 14mm diameter 60KHz, communication cable, operation manual, calibration certificate, recharger, instrument stand, U- disk (or optical disk),

2 pieces of standard conductivity blocks for model HEC-103A1; 3 pieces of standard conductivity blocks for model HEC-103A

Optional accessories:

Conductivity blocks Leather protective case

3.CHARACTERISTICS

• Beautiful appearance, easy to carry about and grasp, simple and convenient to use.
• Big screen, big character typeface; displaying measured result, working frequency, temperature, temperature coefficient, etc. simultaneously.
• Properly designed with back-light illumination for reading measured data in poor-light environment.
• Special temperature coefficient setting and auto calibrating mode, convenient and reliable for user to operate.
• Excellent design of lift-off compensation and temperature compensation of the instrument to ensure the precision of measurement.
• With interchangeable probes of the instrument, the user oneself is able to change probes provided by our company without matching.
• With built-in data memory, enough to record 4000 groups of measured data and important measuring parameter; to connect to a computer for forming a complete report.
• Two kinds of measuring units (MS/m or %IACS) for convenient selection. It is easy to switch to resistivity value directly on the measurement interface.
• Two kinds of language selection: Japanese and English.
