LED Light Source High Brightness Light Uniform Brightness Adjustment Film Viewer

LED Light Source High Brightness Light Uniform Brightness Adjustment Film Viewer
LED Light Source High Brightness Light Uniform Brightness Adjustment Film Viewer LED Light Source High Brightness Light Uniform Brightness Adjustment Film Viewer LED Light Source High Brightness Light Uniform Brightness Adjustment Film Viewer LED Light Source High Brightness Light Uniform Brightness Adjustment Film Viewer

Большие изображения :  LED Light Source High Brightness Light Uniform Brightness Adjustment Film Viewer

Подробная информация о продукте:
Место происхождения: Китай
Фирменное наименование: HUATEC
Сертификация: ISO,CE
Номер модели: ХФВ-2008+
Оплата и доставка Условия:
Количество мин заказа: 1 КОМПЛЕКТ
Упаковывая детали: в картонной упаковке
Время доставки: 3~7 дней после оплаты
Условия оплаты: Л/К, Т/Т, Вестерн Юнион
Поставка способности: 100 комплектов в месяц

LED Light Source High Brightness Light Uniform Brightness Adjustment Film Viewer

описание
Название продукта: Телезритель фильма Максимальная освещенность: 400 000/110 000 кд/㎡
Чернота наблюдательной пленки: 0 ~ 5,0 Область экрана наблюдения: 200x60 (мм)
Выделить:

LED light source film viewer

,

high brightness film inspection equipment

,

uniform brightness adjustment NDT tool

LED Light Source High Brightness Light Uniform Brightness Adjustment Film Viewer

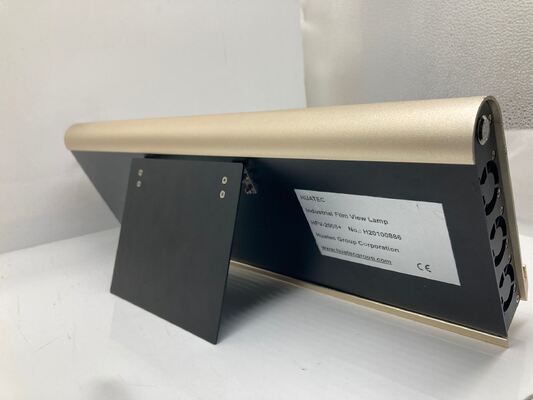

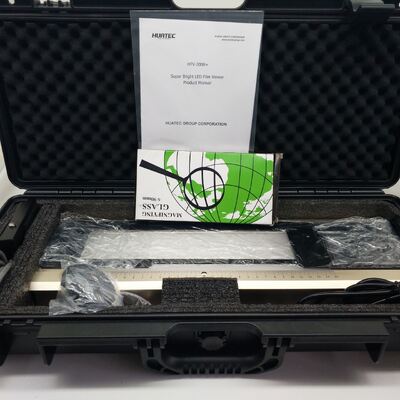

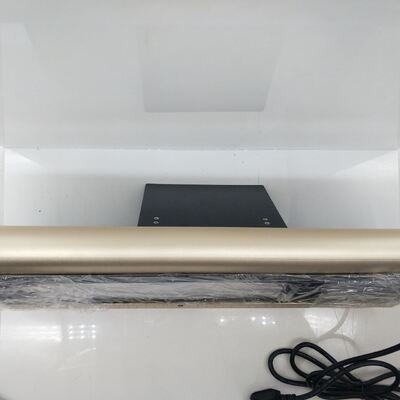

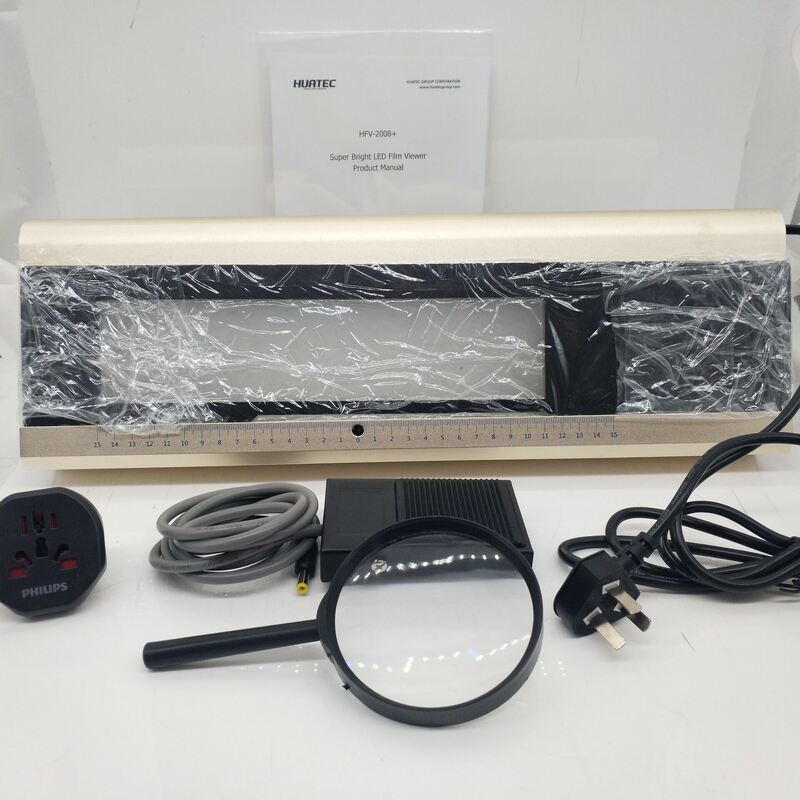

HFV-2008 + film viewing lamp, using advanced electronic induction technology and the latest ultra-high brightness power LED light source, high brightness, light uniform and stable, reasonable structure, reliable use, beautiful shape, easy to carry, brightness arbitrary adjustment, no hot, not cause film curl, suitable for long-term use. Automatic induction screen, when putting film automatically from low light to high light, no film automatically to low light, effectively protect the eyes of film critics, reduce labor intensity. Also can be connected with pedal switch, convenient operation, viewing Angle can be adjusted, better observation. The casing is anodized aluminum alloy, durable, strong earthquake resistance, is currently an ideal X-ray imaging film observation lamp. Widely used in machinery, chemical industry, aviation, shipbuilding, boiler, electric power and other units of radiographic assessment work.



Technical indicators:

Maximum illumination 400,000/110000 CD /㎡
The blackness of the observation film 0 ~ 5.0
Observation screen area 200x60 (mm)
Power supply 47-63Hz/170-260V
Power consumption 3~48W, average 10W
Overall size 310x126x32mm
Weight 1.1kg

◆ Automatic induction screen, when putting film automatically from low light to high light, no film automatically to low light;

◆ Stepless dimming, brightness adjustment from 30% to 100% full bright, with common and highlight switch, reduce eye fatigue, defect resolution is high

LED Light Source High Brightness Light Uniform Brightness Adjustment Film Viewer 0
