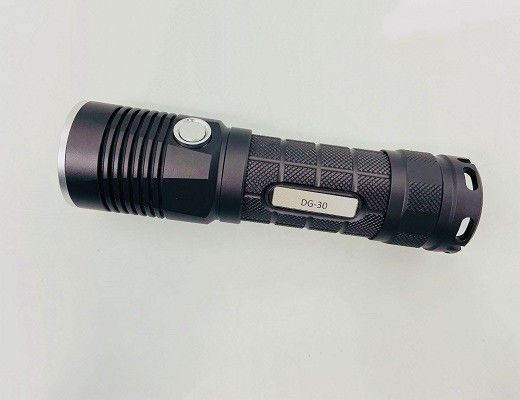

HUATEC LED Ultraviolet Torch Lamp DG-10/30/50/70 Series

HUATEC LED Ultraviolet Torch Lamp DG-10/30/50/70 Series

1· Introduction

DG Series pocket lamp type LED Ultraviolet Lamp is professional portable UV Lamp researched and developed by our company. A complete range of specifications of UV Lamp can meet different requirements. The series possesses ultra-high brightness, long working hours and stable quality etc., and it conforms the National Pressure-bearing Equipment NDT Standard (NB/T 47013-2015).

2. Main Application

u Fluorescence Penetrant Testing

u Fluorescence Magnetic Particle Flaw Detection

u Fluorescence Leak Detection

Other Application

u Oil Stain, Blot Testing

u Special Gas, Oil and Gas Pipeline Testing

u Fluorescence Reflection Detection for Special Materials

u Criminal Investigation and Legal Medical Expert Survey

u Paper Money Authentication, Jewel Appreciation

u Agriculture, Foodstuff, Medical Treatment and other relevant industries.

3. Characteristic and Performance

u HUATEC DG Series adopts high-power 365nm Ultraviolet band LED Lamp

Beads produced by Japanese NICHIA company, 100% free from UV-B and UV-C element,spectrum is pure.

u The lifetime of Lamp Beads reach up to 20000 hours, efficient,energy conservation and environmental protection.

u Quick Start, can reach the maximum illuminance as soon as switch on.

u Ultra-low power consumption,high efficiency.Stand-by time is far more than likewise products.

u Cold light source makes cold operation, outputs the illuminance lasted and steadily.

u Optical filter is black vitaglass.

u High strength aviation aluminum alloy shell with anodize surface.

u Enhance thermal design, can be used continuous for long time.

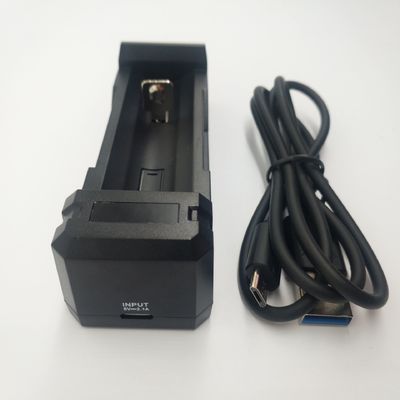

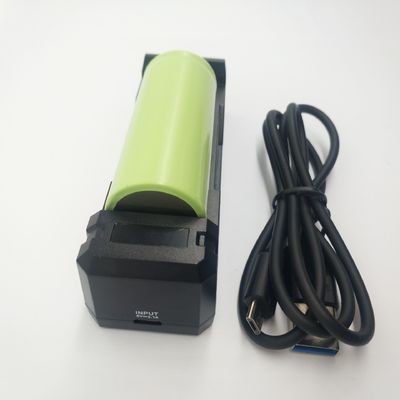

u Configure dedicated high speed charger for each lamp.

u Anti magnetic field interference function makes it possible to work in the strong magnetic field.

u Dust prevention and waterproof standards reach IEC 60529- IP66 grade, suit to different environments, more safety and reliable.

 4. Technical Parameters

UV lamps are key equipment that provide the "eyes" for fluorescent penetrant testing and fluorescent magnetic particle testing. It converts invisible defect information into bright signals that are easily recognizable by the naked eye through fluorescence excitation, and is an indispensable tool for ensuring the quality and safety of high-end manufacturing products.
