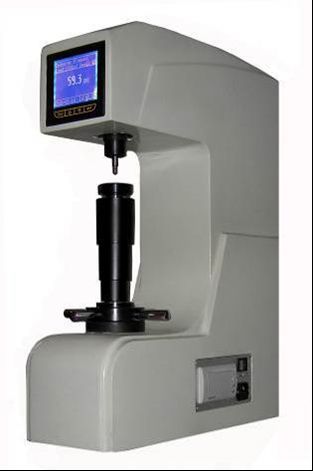

HR150P Automatic Metal and Plastic Rockwell Hardness Tester

HR150P Automatic Metal and Plastic Rockwell Hardness Tester

l  HR150P can be used directly to measure Rockwell hardness for metal and plastic material.

l  Provided with many features such as high measuring precision, wide measuring range with 15 Rockwell scales.

l  Automatic test force switch according the selected scale without manual operation.

l  Automatic load cycle. The loading, dwell, unloading process of the main test force are controlled exactly to meet standard.

l  Measuring results digitally displaying and can be printed, or transmitted to external computer automatically.

l  The tester is suitable for testing of carbon steel, alloy steel, cast iron, non ferrous metal, and engineering plastic etc.

l  Test value can be transformed to the value of HB, HV, HLD, HK and σ_b value.

l  The tester meets all the following standard such as ISO 6508-2, ASTM E18, BS EN ISO6508-2, GB/T230.2.

·  Preload:98.1N (10kgf)

·   Total test force:588.4N (60kgf), 980.7N (100kgf), 1471N (150kgf)

·   Scales:HRA,HRB,HRC,HRD,HRE,HRF, HRG,HRH,HRK,

HRL,HRM,HRP, HRR,HRS,HRV

·   Load dwell duration: 2s～50s, can be set and stored

·   Resolution :0.1HR

·   Display:High definition backlight LCD

·   Operation:Menu selectable, Membrane keypad

·     Upper/lower limits setting & alarming

·     Data statistics: Avg., Max., Min., S, R available

·     Curved surface correcting automatically

·     Memory: Max 500 items of test results stored automatically

·     Data output: USB port to external PC

·     Printer:Model HR1500 with a RS-232 port to the external micro printer (Optional)

·     Testing space:200mm in vertical, 165mm in horizontal

·     Dimensions: 550mm×200mm×720mm

·     Power supply: AC, 220V/110V, 50～60Hz, 4A

·     Net weight: 100kg
